Add CALCULATED PRICING FIELDS TO A REPORT

Overview

This document will show you how to add some calculated pricing fields to a custom report in SI5.

Specifically, it will show how to add these fields for each line item:

· Unit Price  (including equipment adjustment and misc parts)

· Unit Cost    (works for bulk wire items)

· Adjusted Price   (Price + EquipmentAdjustment)

· Extended Price   (Adjusted Price + MiscParts)

· Labor Rate   (Labor Price / Labor Hours)

Steps

1. Open a custom report and go to the Script tab

2. Add this script to the ActiveReport_DataInitialize event. This will add these data fields to the report.

Sub ActiveReport_DataInitialize

   ‘Values are set in the ActiveReport_FetchData event

       rpt.Fields.Add("UnitEQPrice")

       rpt.Fields.Add("UnitEQCost")

       rpt.Fields.Add("ExtendedEQPrice")

       rpt.Fields.Add("AdjustedEQPrice")

       rpt.Fields.Add("LaborRate")

End Sub

3. Add this script to the ActiveReport_FetchData event. This will cause these data fields to be populated when it is time to get a new item.

Function ActiveReport_FetchData(ByVal EOF As Boolean) As Boolean

       'this is needed to keep the report from crashing

       Dim ds As DataDynamics.ActiveReports.Datasources.XMLDatasource = ctype(rpt.Datasource, DataDynamics.ActiveReports.Datasources.XMLDatasource)

       If ds.EOF Then return True

       ' get the current item the report is on...

       Dim itm As DTools.SystemIntegrator.Reporting.Item = ReportUtilities.ReturnItem(rpt)

       'calculate UnitEQPrice, ExtendedEQPrice, and AdjustedEQPrice

       Dim    EQPrice As Decimal = ctype(itm.Price, Decimal)

       Dim    EQCost As Decimal = ctype(itm.Cost, Decimal)

       Dim    EQAdj As Decimal = ctype(itm.EquipmentAdjustment, Decimal)

       Dim    MiscParts As Decimal = ctype(itm.MiscPartsAdjustment, Decimal)

       Dim    Qty As Decimal = ctype(itm.Quantity, Decimal)

       Dim    AdjEQPrice As Decimal = EQPrice + EQAdj

       Dim    ExtEQPrice As Decimal = EQPrice + EQAdj + MiscParts

       Dim    UnitEQPrice As Decimal = ExtEQPrice / Qty

       Dim    UnitEQCost As Decimal = EQCost / Qty

'calculate LaborRate

       Dim    LaborHrs As Double = ctype(itm.InstallationHours, Double)

Dim    LaborPrice As Double = ctype(itm.TotalLaborPrice, Double)

       Dim    LaborRate As Double = LaborPrice / LaborHrs

       'Store the calculated values

       rpt.Fields("UnitEQPrice").Value = UnitEQPrice

       rpt.Fields("UnitEQCost").Value = UnitEQCost

       rpt.Fields("ExtendedEQPrice").Value = ExtEQPrice

       rpt.Fields("AdjustedEQPrice").Value = AdjEQPrice

       rpt.Fields("LaborRate").Value = LaborRate

End Function

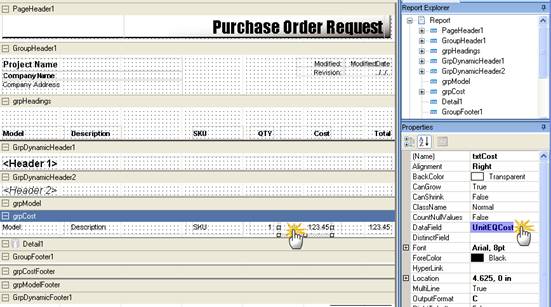

4. Go back to the Designer tab and select or create a textbox where you would like to store one of these values.

5. Change the DataField property for this textbox to the desired value, e.g. UnitEQCost. Can be used for individual items, or subtotals.

sample Report

A sample report can be downloaded here. Do not unzip – store to local drive and import using Reporting Center.

http://downloads.d-tools.com/si5/reports/Fixes/Purchase_Order_v2.zip
